Sikagard®-75 EpoCem®

Superfine Epoxy Cement Sealing Mortar and Temporary Moisture Barrier

Sikagard®-75 EpoCem® is a 3-component epoxy-modified cementitious sealing and levelling mortar, suitable for application to most mineral based substrates.
Its specific balanced formulation ensures that the properties of the hydrated cement are both complemented and enhanced by the integral epoxy mortar.

  • Waterproof yet permeable to water vapour, allows the substrate to "breath"
  • Excellent adhesion to dry or damp substrates
  • Fast and easy to apply to sound prepared substrates
  • Solvent free and virtually odourless
  • Ideal surface preparation with the minimum of delay for the subsequent application of other appropriate Sika epoxy products
  • High abrasion resistance
  • Free of chloride
  • Similar thermal and elastic properties to concrete
  • Good adhesion after long-term water immersion
  • Suitable for interior or exterior use
Where to Buy
Product Data Sheet Show all documents

Usage

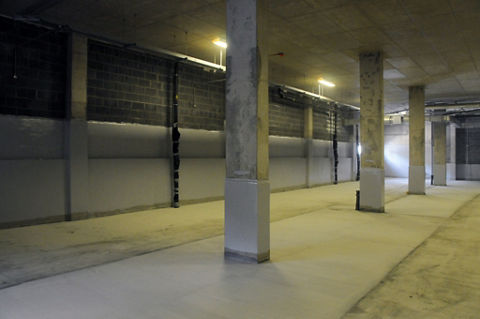

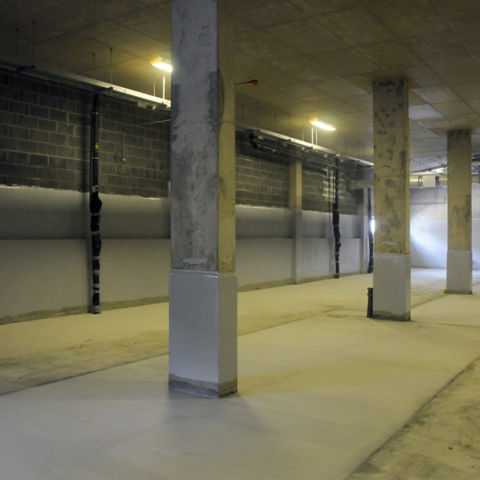

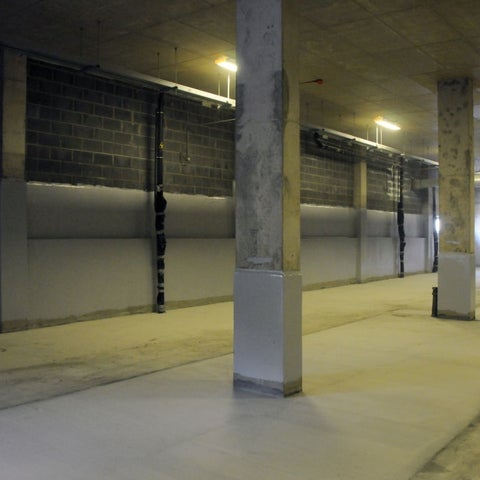

Used on both vertical and horizontal surfaces of concrete, mortar or stone, the thixotropic mortar can be applied as a thin layer coating,
0.5-2 mm thick or as a scraping/ levelling mortar to fill in blow holes, shallow honey combing and other surface irregularities. Its ability to provide a temporary moisture barrier provides and ideal substrate for subsequent epoxy coatings.

Advantages

  • Waterproof yet permeable to water vapour, allows the substrate to "breath"
  • Excellent adhesion to dry or damp substrates
  • Fast and easy to apply to sound prepared substrates
  • Solvent free and virtually odourless
  • Ideal surface preparation with the minimum of delay for the subsequent application of other appropriate Sika epoxy products
  • High abrasion resistance
  • Free of chloride
  • Similar thermal and elastic properties to concrete
  • Good adhesion after long-term water immersion
  • Suitable for interior or exterior use

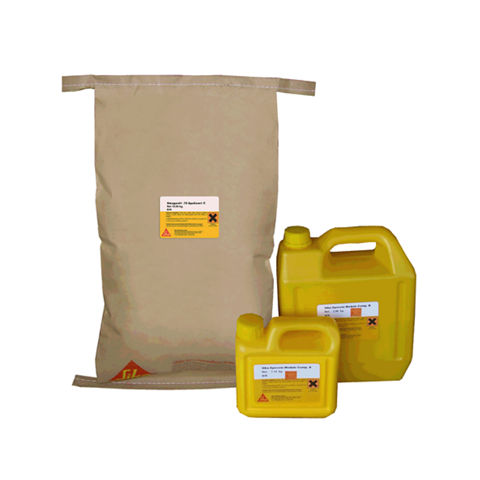

Packaging

Part A : 1.14 kg plastic bottle
Part B : 2.86 kg plastic bottle
Part C : 19 kg/ bag

Colour

Part A :White liquid
Part B :Dark grey liquid
Part C :Grey powder
Mixed :Thixotropic flowable mortar

Product Details

Product Information

Shelf life

12 months from date of production if stored in undamaged and unopened original sealed bag.

Storage conditions

Stored in the original sealed containers within the temperature range of+5°C to +35°C.

Density

2.0 kg/litre approx. (mixed)
Technical Information

Tensile Adhesion Strength

Greater than 1.5 MPa on prepared concrete substrate.

Application

Application Information

Mixing Ratio

Component A: 1.14 kg.
Component B: 2.86 kg.
Component C: 18 - 19 (depending on required consistency)

Layer Thickness

Maximum coating thickness: 2 mm

Substrate Temperature

+8°C to +25°C

Pot Life

10°C

20°C

30°C

45 mins.

35 mins.

25 mins.

* approx. for 23 kg mix (at 75% relative humidity)

Curing Treatment

10°C

20°C

30°C

Ready for overpainting

1 day

18 hours

12 hours

Light loading permitted

3 days

2 days

1 day

Fully cured

14 days

7 days

5 days

*at 75% relative humidity
Consumption

Consumption

Approximately 2.5 to 3.5 kg/m2 for a thickness of 1.0 to 1.5 mm.
Application steps

MIXING

Shake component A (white liquid) briefly and pour into Component B (plastic container) and shake vigorously for 30 seconds. Pour the mixture
(A+B) into a 25 -30 litre pail and add Component C. Mix thoroughly for at least 3 minutes using a low speed electrically driven paddle/stirrer until a smooth homogenous consistency is achieved.

Note that the consistency can be adjusted to suit the particular application by reducing the Component C content by up to 15%.



APPLICATION

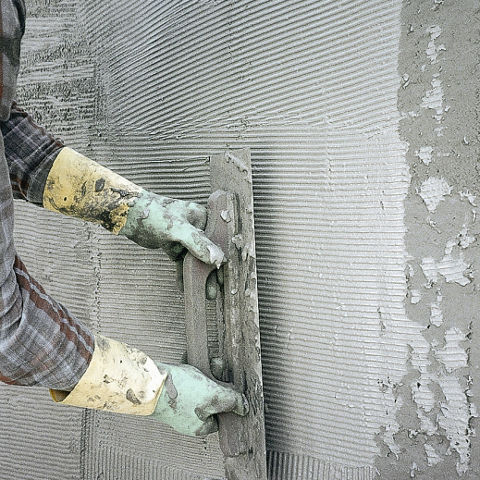

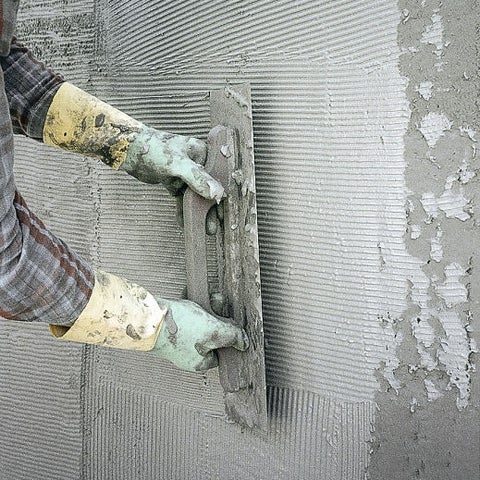

Sikagard®-75 EpoCem® can be applied by steel trowel, spatula etc., to the prepared dry or damp substrate. Work the material well into the substrate to ensure complete filling of voids etc., and intimate surface contact.
Following initial set a fine surface finish can be achieved by finishing with a damp sponge or suitable brush.
A fine gripping surface finish is recommended for subsequent epoxy coatings.

CLEANING OF EQUIPMENT

Clean all tools with water immediately after use. Once cured,Sikagard®-75 EpoCem® can only be removed mechanically.
