2-PART EPOXY COVERING FOR SMOOTH AND BROADCASTED FLOORING SURFACES

Sikafloor®-263 SL HC is a two part, multipurpose binder based on epoxy resin.

  • Highly fillable
  • Good chemical and mechanical resistance
  • Easy application
  • Liquid proof
  • Gloss finish
  • Slip resistant surface possible

Where to Buy
Product Data Sheet Show all documents

Usage

Sikafloor®-263 SL HC is used as:

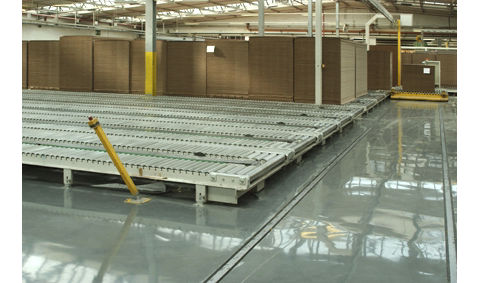

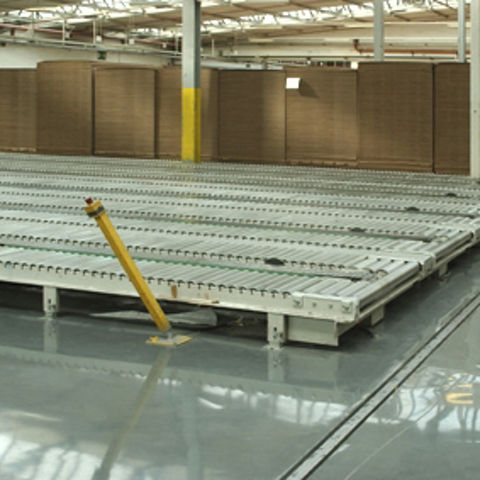

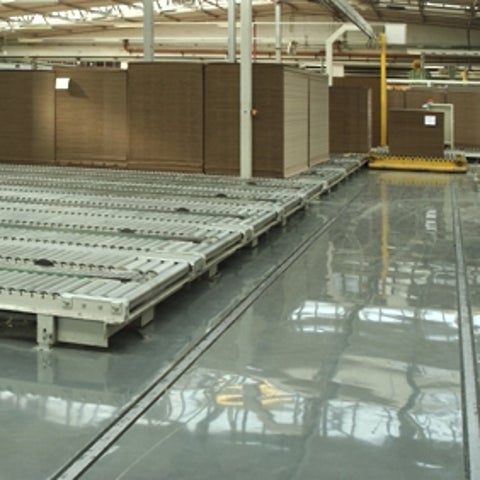

  • Self-smoothing and broadcast systems for concrete and cement screeds with normal up to medium heavy wear e.g. storage and assembly halls, maintenance workshops, garages, loading ramps etc.

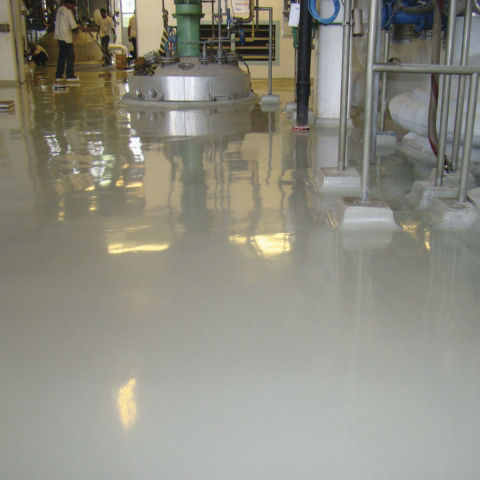

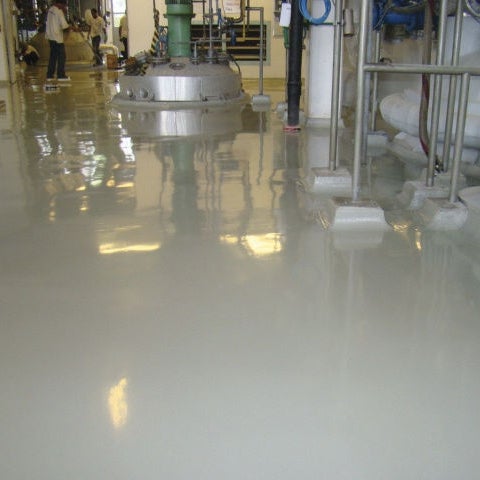

  • The broadcast system is recommended for multi-storey and underground car parks, maintenance hangars and for wet process areas, e.g. beverage and food industry.

Advantages

  • Highly fillable
  • Good chemical and mechanical resistance
  • Easy application
  • Liquid proof
  • Gloss finish
  • Slip resistant surface possible

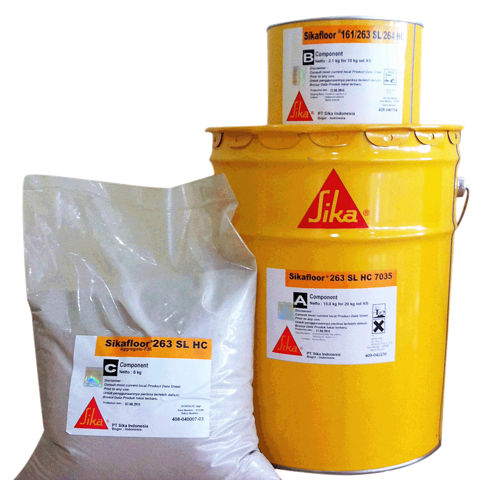

Packaging

Part A : 15.8 kg can, 7.9 kg can

Part B : 4.2 kg can, 2.1 kg can

Part A+B : 20 kg set and 10 kg set

Part C (Agg. F36) : 8 kg bag

Part A+B+C : 18 kg set (A= 7.9 kg + B= 2.1 kg + C= 8 kg)

Colour

Resin - part A:

Liquid / Coloured

Hardener - part B:Liquid / Clear Yellowish
Agg. F36 - Part C:Powder / Grey

Available in a number of colour shades. Please consult our Technical Sales Engineer for further details. Under direct UV exposure (sun, lamp, skylight, etc.) there may be some discolouration and colour deviation, this has no influence on the function and performance of the coating.

Product Details

Sustainability / Certifications / Approvals

SUSTAINABILITY

Conforms with LEED v4 EQ credit : low-emitting materials

CERTIFICATES AND TEST REPORTS

  • VOC content pass LEED v4.1 requirement (VOC Content), Report no. 392-2022-10179005_XG_EN, Eurofins Product Testing, Denmark, June 2022.
  • VOC emission pass CDPH, Report no. 392-2022-00179002_H_EN, Eurofins Product Testing, Denmark, May 2022.
  • Good biological Resistance Sikafloor®-263 SL in accordance with ISO 846, CSM Report No. 1008-533, May 2011.
Product Information

Composition

Epoxy

Shelf life

24 months from date of production.

Storage conditions

The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +18 °C and +30 °C.

Density

Part A

~1.50 kg/L

Part B~1.00 kg/L
Mixed resin~1.43 kg/L
Filled resin (1:0.8)~1.84 kg/L

All Density values at +23 °C.

Solid content by mass

~100 %

Solid content by volume

~100 %
Technical Information

Shore D Hardness

~76 (7 days/+23 °C)

Abrasion resistance

41 mg (CS 10/1000/1000) (7 days / +23 °C)

(DIN 53 109)

Compressive strength

Resin: ~50.0 N/mm2 , Resin (filled 1:0.9 with F36 (28 days))

(EN196-1)

Flexural-strength

Resin: ~20.0 N/mm2 , Resin (filled 1:0.9 with F36 (28 days))

(EN 196-1)

Tensile adhesion strength

>1.5 N/mm² (failure in concrete)

(ISO 4624)

Chemical resistance

Resistant to many chemicals. Contact Sika technical service for specific Information.

Temperature resistance

Exposure*

Dry heat

Permanent+50 °C
Short-term max. 7 days+80 °C
Short-term max. 12 hours+100 °C

Short-term moist/wet heat* up to +80 °C where exposure is only occasional (steam cleaning etc.).

*No simultaneous chemical and mechanical exposure and only in combination with Sikafloor® systems as a broadcast system with approx. 3 - 4 mm thickness.

Application

Application Information

Mixing ratio

Part A : part B = 79 : 21 (by weight)

Ambient air temperature

+10 °C min. / +30 °C max.

Relative air humidity

80 % r.h. max.

Dew point

Beware of condensation!
The substrate and uncured floor must be at least 3 °C above dew point to reduce the risk of condensation or blooming on the floor finish.
Note: Low temperatures and high humidity conditions increase the probability of blooming.

Substrate temperature

+10 °C min. / +30 °C max.

Substrate moisture content

< 4 % pbw moisture content.
Test method: Sika®-Tramex meter, CM-measurement or Oven-dry-method. No rising moisture according to ASTM (Polyethylene-sheet).

Pot Life

Temperature

Time

+10 °C~50 min
+20 °C~25 min
+30 °C~15 min

Curing time

Before applying Sikafloor®-263 SL HC on Sikafloor®-161 HC allow:

Substrate temperature

Minimum

Maximum

+10 °C24 h3 d
+20 °C12 h2 d
+30 °C8 h1 d

Before applying Sikafloor®-263 SL HC on Sikafloor®-263 SL HC allow:

Substrate temperature

Minimum

Maximum

+10 °C30 h3 d
+20 °C24 h2 d
+30 °C16 h1 d

Note : Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.

Applied product ready for use

Temperature

Foot traffic

Light traffic

Full cure

+10 °C~72 h~6 d~10 d
+20 °C~24 h~4 d~7 d
+30 °C~18 h~2 d~5 d

Note: Times are approximate and will be affected by changing ambient conditions.
Consumption

Consumption

Coating System

Product

Consumption

PrimingSikafloor®-1611-2 x 0.35-0.55 kg/m²
Levelling (optional)Sikafloor®-161
levelling mortar		Refer to PDS of Sikafloor®-161 HC
Self-smoothing wearing course
(Film thickness ~1. 5 - 3.0 mm )		1 pbw Sikafloor®-263 SL HC 0.8 pbw quartz sand (0.1 - 0.3 mm)~1.84 kg/m² mixture (1.02 kg/m² binder + 0.82 kg/m² quartz sand) per mm layer thickness
Broadcast system
(Film thickness ~4.0 mm)

1 pbw Sikafloor®-263 SL HC
1 pbw quartz sand (0.1 - 0.3 mm)

+ broadcasting quartz sand 0.4 -0.7 mm

+ Seal coat Sikafloor®-263 SL HC

2.00 kg/m²
2.00 kg/m²
~6.0 kg/m²
~0.7 kg/m²

These figures are theoretical and do not allow for any additional material due to surface porosity, surface profile, variations in level and wastage etc.
Application steps

MIXING

Prior to mixing, stir part A mechanically. When all of part B has been added to part A, mix continuously for 3 minutes until a uniform mix has been achieved.
When parts A and B have been mixed, add the quartz sand and if required the Extender T and mix for a further 2 minutes until a uniform mix has been achieved.
To ensure thorough mixing pour materials into another container and mix again to achieve a consistent mix.
Over mixing must be avoided to minimise air entrainment.


MIXING TOOLS

Sikafloor®-263 SL HC must be thoroughly mixed using a low speed stirrer (300 – 400 rpm) or other suitable equipment.

APPLICATION

Prior to application, confirm substrate moisture content, r.h. and dew point.
If > 4% pbw moisture content, Sikafloor® EpoCem® may be applied as a T.M.B. (temporary moisture barrier) system.

Primer
Make sure that a continuous, pore free coat covers the substrate. If necessary, apply two priming coats. Apply Sikafloor®-161/160 HC by brush, roller or squeegee. Preferred application is by using a squeegee and then backrolling crosswise.


Levelling:
Rough surfaces need to be levelled first. Therefore use e.g. Sikafloor®-161 HC levelling mortar (see PDS).


Wearing course smooth:

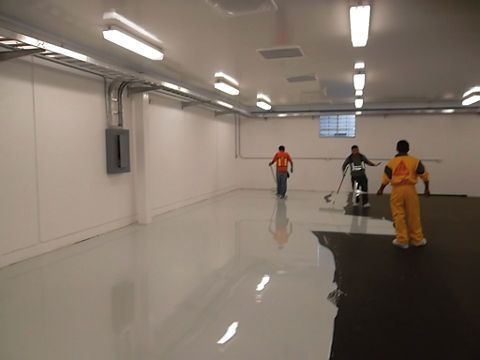

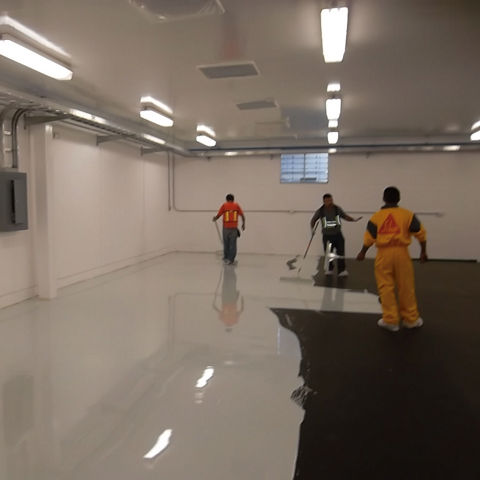

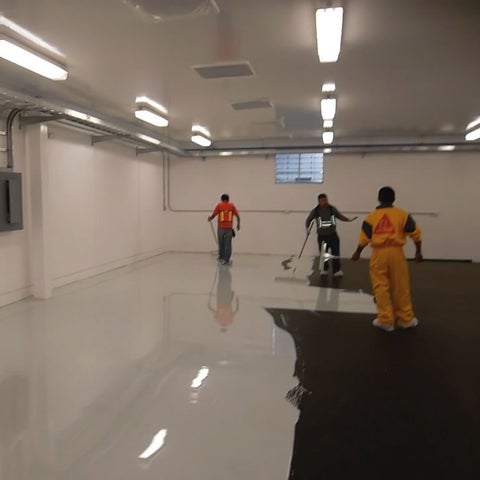

Sikafloor®-263 SL HC is poured, spread evenly by means of a serrated trowel.
After spreading the material evenly, turn the serrated trowel and smooth the surface in order to achieve an aesthetically higher grade of finish.
Roll immediately in two directions with a spiked roller to ensure even thickness.

Broadcast system:
Sikafloor®-263 SL HC is poured, spread evenly by means of a serrated trowel.
Then, level and remove any entrapped air with a spiked roller and after about 5 minutes (at +30 °C) but before 10 minutes (at +30 °C), broadcast with quartz sand, at first lightly and then to excess.

CLEANING OF EQUIPMENT

Clean all tools and application equipment with Thinner C immediately after use. Hardened and/or cured material can only be removed mechanically.

CLEANING

To maintain the appearance of the floor after application, Sikafloor®-263 SL HC must have all spillages removed immediately and must be regularly cleaned using rotary brush, mechanical scrubbers, scrubber dryer, high pressure washer, wash and vacuum techniques etc using suitable detergents and waxes.
